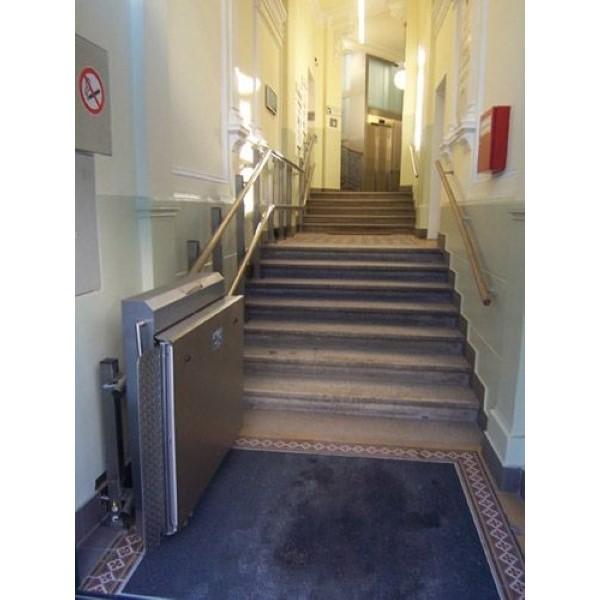

Platform Type Ladder System

It is produced specially according to the desired location.

On the side of the handrail in the models with rotation,

in flat models it is mounted on both sides.

Rails attached to the feet mounted on the venue

moves on.

Works with battery, if needed at parking points

recharges itself.

Optionally, it is also available with direct electricity supply.

Working in any environment up to -15°C

has the feature.

Rails made of stainless steel are resistant to corrosion.

Capacity is standard 300 kg.

It can be optionally increased up to 350 and 400 kg.

The platform folds and opens, provided that the buttons are pressed.

moves up and down.

Its speed is 0.05 m/sec in turns. it is 0.12 m/s in straight travel.

Since it hides the control panel when folded and

Since it is metal, it is very difficult to damage the product.

Ignition switch located on control panels

Thanks to this, it is ensured that only necessary persons can use it.

Technicial Specifications:
Step Size (mm): 600, 800, 1000
Slope (Degrees): 0, 6, 27.3, 30, 35
Place of Use: Mall, Public Space, Airport, Metro
Usage Area: Indoor, Outdoor
